TDL-2006B
Specification






Model No.
TDL-2006B
Fuction discription
RF remote control for tubular motor,fixed code
Operating voltage
220VAC
Static current
3 mA
Load current
10A 220VAC
Transmitting distance
120M ~ 150M
Coding type
fixed code
Operating frequency
315MHz / 433MHz ( 250 ~ 450 MHz can be customizd)
Control mode
remote control,foreward
/reversal
Dimension
130×95×45mm
Functions and features

1. Adopt American Microchip for intellegent control,3-segment ,multi-bit coding and decoding technology,high security.
2.transmitter adopts solid frequency design,reliable perormance,automatic power off,saving energy.
3.Long transmitting distance: 150M(open space)
4.The receiver will automatically power off after 65 seconds' working,(25 sec or 45 sec can be customized)
5.Elegant exterior design,simple connecting method.

Range of application
It matches all kinds of Tubular Motors
Data Download

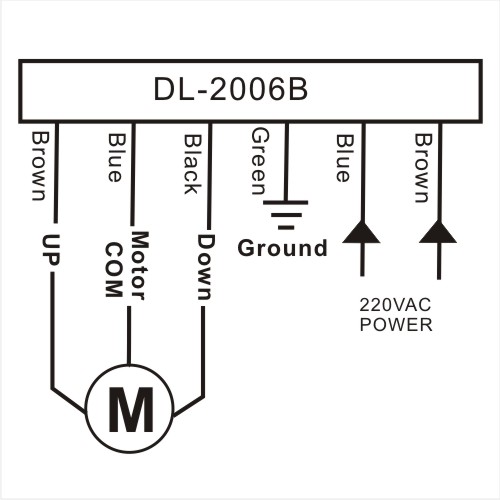

wiring diagram designsketch operating guide
