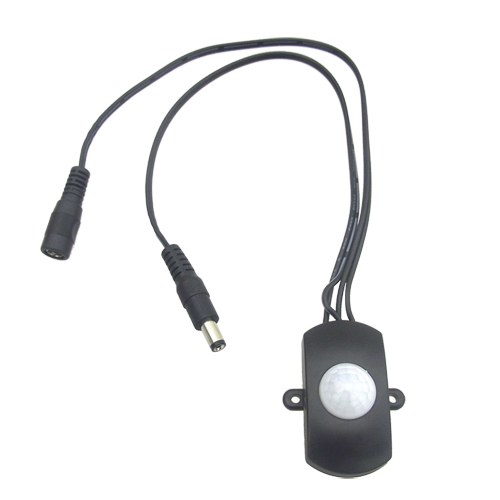

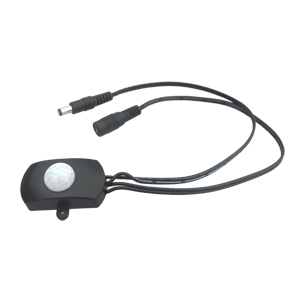

TDL-2023

Specification

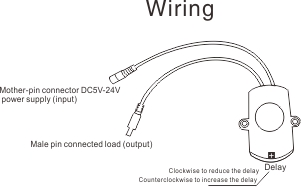

Wiring Diagram

Model No.	TDL-2023
Function discription	Human infrared sensor module, wide voltage input volt output number is the number of volts,
Operating voltage	5V --24VDC (wide voltage)
Operating temp.	-20 °C ～ +50 °C
Static current	< 50uA
Output current	5A
Trigger Mode	Continuous Trigger
Output mode	Sensor Output
Delay Range	The factory setting 15S (2-360 seconds adjustable)
Induction way	Passive
Induction angle	120-degree cone angle
Detecting distance	5~7 M
Dimension	50 * 40 * 22.5mm

Range of application&Functions and Features

1. The person to output, delay shut down automatically after people leave,
2. Adjustable delay time (2-360 seconds).
3. For the hallway, corridor, bathrooms, basements, warehouses, garages and other places of automatic lighting, automatic ventilation exhaust fan and other electrical automatic control and other functions ..
4. Brightness Control: Are brightness control (according to customer requirements plus sensitive).
5. If the request for additional light-sensitive functions, the sensor will sense the human body to work at night, during the day does not work.
6. Random Time: 16 seconds (can be customized according to customer requirements, customized range of 2-120 seconds).
7. Temperature compensation: Rio Dieter chip temperature compensation to reduce the impact by temperature sensing distance.
