TDL-2024
Specification

Wiring Diagram

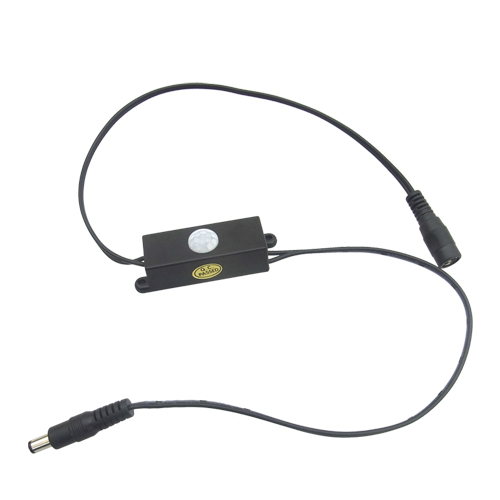

Model No.
TDL-2024
Function discription
Human infrared sensor module, wide voltage input volt output number is the number of volts,
Operating voltage
5V --24VDC (wide voltage)
Operating temp.
-20 °C ～ +50 °C
Static current
< 50uA
Output current
4A
Wiring
Male and female pin (input / output)
Output mode
Sensor Output
Delay Range
The factory setting 15S (2-360 seconds adjustable)
Induction way
Passive
Induction angle
120-degree cone angle
Detecting distance
>3 M
Dimension
63*19.5*18.5mm
Range of application&Functions and Features
1. The person to output, delay shut down automatically after people leave,
2. For hallway, corridor, bathrooms, basements, warehouses, garages and other places of automatic lighting, automatic ventilation exhaust fan and other electrical automatic control and other functions ..
3. Brightness Control: Are brightness control (according to customer requirements plus sensitive).
4 delay time: 15 seconds (can be customized according to customer requirements, customized range of 2-120 seconds).
5. Temperature compensation: Rio Dieter chip temperature compensation to reduce the impact by temperature sensing distance.
