SHENZHEN TUODI ELECTRONICS CO., LTD.

TDL-3002

Specification

Model No.	TDL-3002
Function discription	insert card for power
Operating voltage	AC 110V~250V (50~60Hz)
Operating temp.	-20 °C ～ +50 °C
Static pwer	< 0.16W
Load power	6600W
Load current	30A
Connecting style	bipolarity
Output mode	voltage output
Delay shutdown time	15seconds
Induction mode	all kinds of cards
LED indicator	scattering beautifull blue light
Shell color	Pure white
Service life	full-load (220v)of relay contact:>100 thousand times.
Dimension	86 * 86 mm

Range of application&Functions and Features

    Intelligent insert card for power switch adopts general card for power, it is energy saving .Intelligent insert card for power switch is installed on the wall beside the door of guestroom, when people come, insert the card for power, it will instantly connect the main power, all the appliances (light,air-condition,television,etc.)of the room can work. when people leave, take away the card, switch will be Automatic Power Off within 15 delay seconds. it is energy saving and safe. if you need power again, just reinsert the card..
1、LED indicator
   lighting indicator, keep pace with modern hotel and convenient to customer for night operation.
2、Delay shutdown
   when people leave ,taking out the card, the main power will be automatic off in 15 seconds,it is convenient and safe.

Data Download

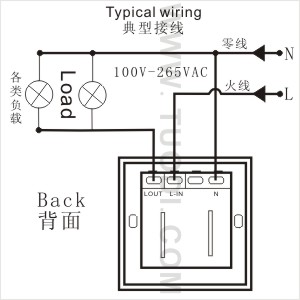

Installation

connectio

Induction

operating

diagram

designsketc

guide
