SHENZHEN TUODI ELECTRONICS CO., LTD.



TDL-708
Specification


Model No.
TDL-708
Function discription

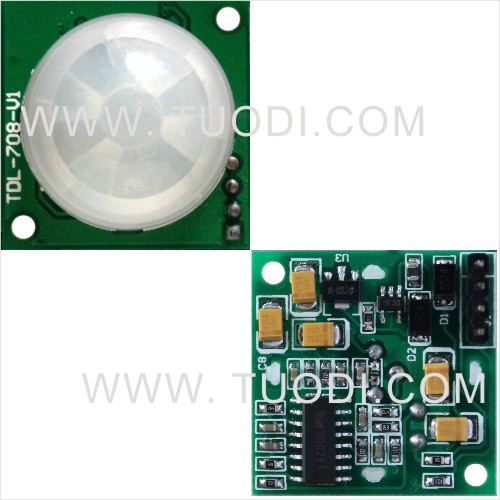

infrared sensor modules,hight voltage output,wide voltage
Operating voltage
1V-8VDC
Operating temp.
-20 °C ~ +50 °C
Static current
< 3uA
Output current
5mA(DC3.3V)
Load capacity
Audion driven,singlechip port
Connecting style
Red-anode,Black-cathode
Yellow-output
Output mode
induction output
Light control range
Delay shutdown time
15seconds( customized )
Induction mode
passive
Induction angle
180°coning angle
Detecting distance
7~10 M
Dimension
28 * 28mm
Range of application&Functions and Features
1.Automatic induction: when people enter into the range of induction,it will turn on,when people leave,it will turn off with delay.
2.It can be applied to corridor ,passageway, toilet,basement, warehouse,garage,etc., which have the function of automatic lighting, and control.
3.luminance metering:we can add photoactivity according to customers'requirement
4.Random delay time:16seconds(customizd 2seconds~120minutes)
5.Temperature compensation:tuodi specialized temperature compensation chip,which used to reducing the effect of temp. on detecting distance.
6.Triggering mode:repeatable triggering mode,non-triggering mode(optional)
Data Download

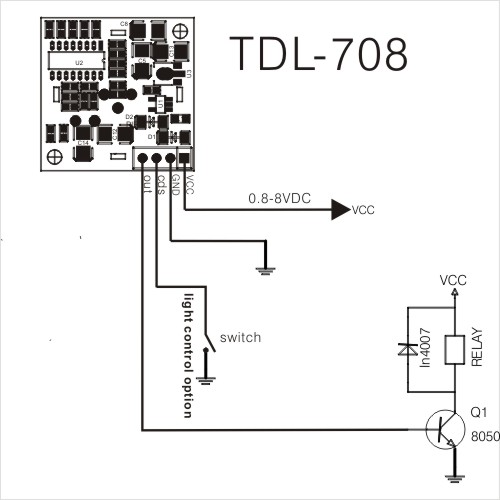

connection diagram Induction designsketc operating guide
