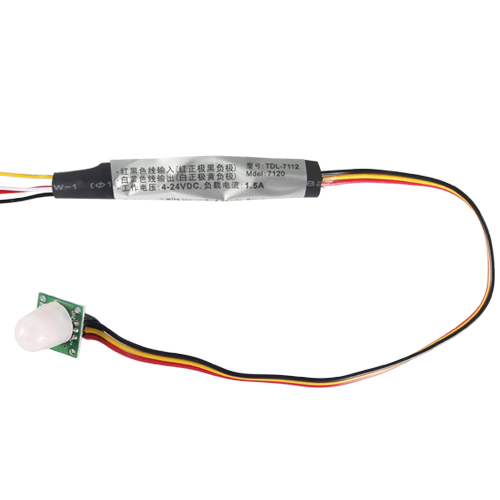

TDL-7112C

Specification

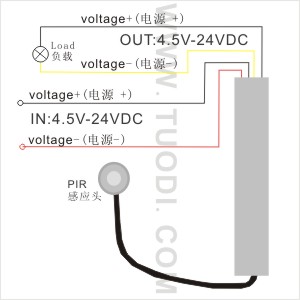

Wiring Diagram

Model No.	TDL-7112C
Function discription	Human infrared sensor module, wide voltage input volt output number is the number of volts,
Operating voltage	5V --24VDC (wide voltage)
Operating temp.	-20 °C ～ +50 °C
Static current	< 30uA
Output current	1A
Wiring	Enter long-term, short-term output
Output mode	Sensor Output
Delay Range	15 S(can be customized in different time delay)
Induction way	Passive
Induction angle	120-degree cone angle
Detecting distance	5 ~ 7 M / Lens Specifications: 17* 9.5mm
Dimension	50 * 90*3.5mm

Range of application&Functions and Features

1. The person to output, delay shut down automatically after people leave,
2. For hallway, corridor, bathrooms, basements, warehouses, garages and other places of automatic lighting, automatic ventilation exhaust fan and other electrical automatic control and other functions ..
3. Metering Brightness: None (according to customer requirements plus photosensitive)
The random delay: 16 seconds (can be customized according to customer requirements, customized range of 2-120 seconds)
5. Temperature compensation: Rio Dieter chip temperature compensation to reduce the impact by temperature sensing distance.
6. Trigger: continuous trigger, not continuous trigger (Jumper selectable).
7. infrared probe separated from the motherboard to facilitate the installation of special requirements
