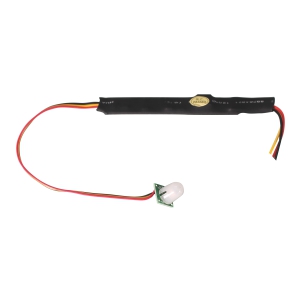

TDL-748
Specification

The body sensor switch, the firs tindustry'ssmallest thinnest sensor switch products

Model No.
TDL-748
Function discription
relay controls load,can installed in different lamp holders
Operating voltage
AC 110V~250V (50~60Hz)
Operating temp.
-20 °C ~ +50 °C
Static current
< 0.06W
Output current
300W
Load capacity
all kinds of lights, appliances
Connecting style
input220VAC,output220VAC
Output mode
induction output
Delay shutdown time
16S ± 20%
Induction mode
passive
Induction angle
110°coning angle
Detecting distance
4~5 M
Dimension
110 * 14mm
Range of application&Functions and Features
1.Automatic induction: when people enter into the range of induction,it will turn on,when people leave,it will turn off with delay.
2.It can be applied to corridor ,passageway, toilet,basement, warehouse,garage,etc., which have the function of automatic lighting, and control
3.Automatic random delay:After it turns on,in the delay period,if there is presence of people,it keeps on working until people leave,than turn on with delay.
