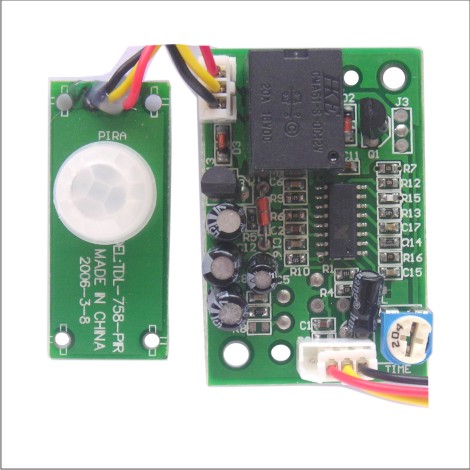

TDL-758

Specification

Model No.	TDL-758
Function discription	infrared sensor modules,hight voltage output
Operating voltage	5V-24VDC
Operating temp.	-20 °C ～ +50 °C
Static current	< 30uA
Output current	5A
Connecting style	Red-anode,Black-cathode Yellow-output
Output mode	induction output
Light control range	adding photoactivity according to customers'requirement
Delay shutdown time	15seconds（ customized ）
Induction mode	passive
Induction angle	140°coning angle
Detecting distance	3 ~ 5 M
Dimension	45 * 30mm

Range of application&Functions and Features

1.Automatic induction: when people enter into the range of induction,it will turn on,when people leave,it will turn off with delay.
2.It can be applied to corridor ,passageway, toilet,basement, warehouse,garage,etc., which have the function of automatic lighting, and control.
3.luminance metering:we can add photoactivity according to customers'requirement
4.Random delay time:16seconds(customizd 2seconds~120minutes)
5.Temperature compensation:tuodi specialized temperature compensation chip,which used to reducing the effect of temp. on detecting distance.
6.Triggering mode:repeatable triggering mode,non-triggering mode(optional)

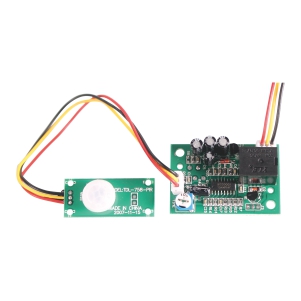

7.PIR Sensor is sepreted with mainboard,convenient for some special installation.
