TDL-9915
  >>>Instruction >>>Application Case





Model No.

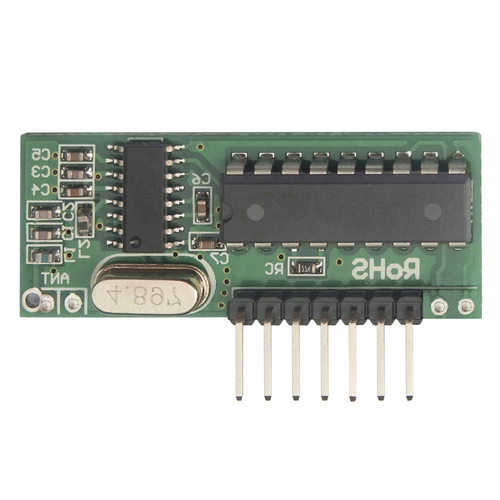

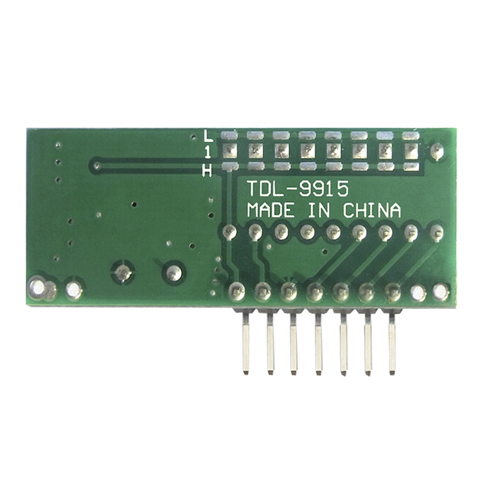

TDL-9915
Function discription
Super-regenerative receiver module, PT2272 decoding
Operating voltage
5VDC
Static current
≤3 mA (DC 5V)
Operating frequency
315MHz / 433MHz (frequency accept customized 250 ~ 450 MHz)
modulation Mode
ASK/OOK
Receiving sensitivity
over -105 dBm (50 Ω)
Speed
< 5 K bps (at 315 MHz, -95 dBm)
TTL voltage output
Non-lock (M) mode, the interlocking (L) mode, self-locking (T)mode
Operating temp.
-20 °C ～ +70 °C
Antenns length
24 cm (315 MHz), 18 cm (433.92 MHz)
Dimension
47 * 19 mm
Range of application

1. to receive a variety of low-rate digital signal;
2.TTL level output, 4-way control with PT2272 decoder chip
3. Industrial remote control, telemetry, remote sensing;
4.The anti-theft alarm signal reception, remote control and other various household appliances.
