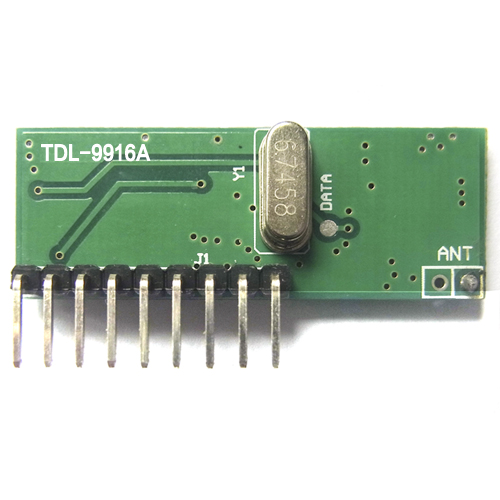

TDL-9916A
  >>>Instruction >>>Application Case





Model No.
TDL-9916A
Function discription
RF superregenerete receiving modules,learning ,decoding
Operating voltage
3V ~ 5VDC
Static current
≤3 mA (DC 5V)
Operating frequency
315MHz/433MHz ( 250 ~ 450 MHz can be customized)
modulation Mode
ASK/OOK
Receiving sensitivity
over-105 dBm (50 Ω)
Speed
< 5 K bps (at 315 MHz, -95 dBm)
TTL voltage output
latch type,ripple type
Operating temp.
-20 °C ～ +70 °C
Antenns length
24 cm (315 MHz), 18 cm (433.92 MHz)
Dimension
48 * 15 mm
Range of application

1.4 bits data wireless receiving,anti-theft alarm signal decoding.
2.Indusrial remote control,telemetry,remote sensing
3.Remote control of all kinds of appliances
4.I t can decode PT2262,2260,1527,2240coding chips or ,Compatible chip .learning storage:15 controllers.
Data Download
connection diagram Induction designsketch operating guide
