SHENZHEN TUODI ELECTRONICS CO., LTD.

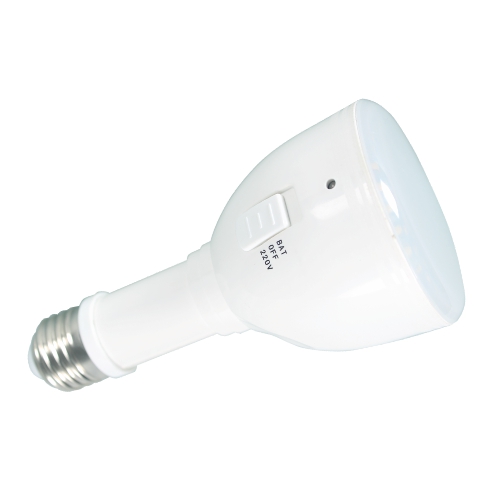

| TDL-1050 | ||||
| Product Discription |
used as bulb
used as torch used
as desk lamp |
|||
| Ups continuing led bulb adopt the most advanced integrated Led+Ups design which use the optimized design for the whole circuit, adapt the material with high quality and precision. When the bulb is working state please put the button to 220v status, and when stop using it ,put the button to off status. It can be used as emergency light and when you draft it ,it can be used as torch. | ||||
| Specification： | ||||
| Switch：PIR
sensor Detecting angle: 120 degree Detecting distance: >3m Service time :> 80000h Color: white Operating currentt: 43MA Operating voltage:85V-277VAC（50/60Hz) Power: 5W Lum: 19LM Operating temperature: -10℃-50℃ Size: 106*68*E27lamp Weight: 150g |
||||
| Installation | ||||
| E27（screw） | ||||
| Function and feature | ||||
| 1.adapt
advanced led technology : high efficiency,emergy-saving, long service
time, anti-explosion ,wide application. 2.adapt national stander ups continuing power supply. Long service time, super lithium battery and UPS. 3. delicate outlook design. 4.resonable nonstructural design. With E27 lamp 5.when fully recharged , it can continually used for 3 hours . |
||||
| Installing Method : | ||||
| Magnet installation | ||||
| Attentions: | ||||
| It is not waterproof, don’t put it in the rains and heavy humid place 。 | ||||
| Range of Application: | ||||
Doorway
stairway, stair, attic inner room ,The basement, garage, the cellar,
wardrobe, hotel ambry wardrobe , |
||||
| Data Download | ||||
 wiring
diagram |
induction
designsketch |
operating
guide |
||
| |
