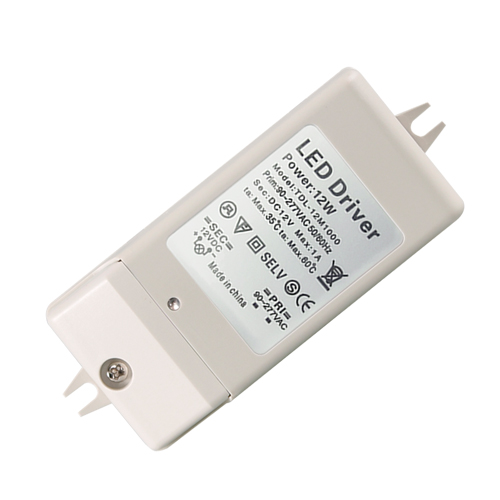

TDL-12V1000MA
Specification


wiring diagram(diagrammatic sketch)

Model No.
TDL-12V1000MA
Input voltage
85VAC~277VAC
Output voltage
12VDC
Power factor
>0.9
Harmonic distortion
(THD):<20%
Supply efficiency
>75-80%
Output current
1A
Output power

12W

Junction box
7A is available
Dimension
105×41.7×19.5mm
Functions and Features
* keep high efficiency within the output power
* offer wide alternating voltage,input voltage85VAC~277VAC
* Full protection,which can erriciently prevent the driver from lighting stroke(above 1KV)
*Include short-circuit protection,overcurrent protection,overvoltage protection,overload protection,overtemp. protection.
Environment parameter
Operating temp.:-25 -60℃ (cover tempt.)
Storage temp.:-40 -85℃
Operating humidity:10-90% relative humidity
Average service time: (MTBF)50,000 hours
Safety Certification : UL8750,EN61347,GB19510
Electromagnetic jamming :EN55015,EN61547,EN61000.
Data Download
wiring diagram induction designsketch operating guide
