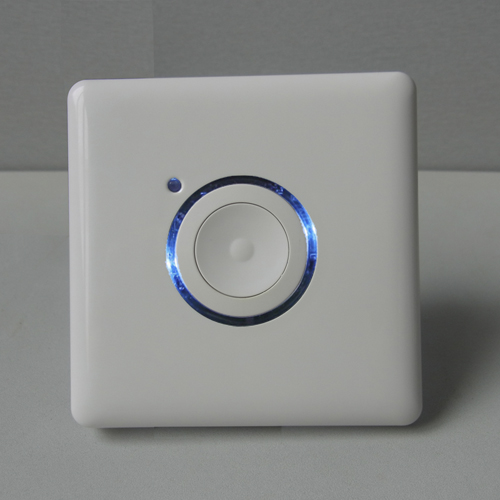

TDL-2115

Specification

Modle No.	TDL-2115
Fuction discription	Outdoor button timer, relay control load, 16A
Operating voltage	AC 110V~250V (50~60Hz)
Perating temp.	-20 °C ～ +50 °C
Load power	16A
Load capacity	Resistive load and incandescent / fluorescent lighting, no load
Wiring	Bipolar
Output mode	Outdoor Timer button
Delay Range	4-speed delay selection DIP switch selection
Installation	Standard 86, wall mount
Dimension/color	86 * 86 mm/porcelaine

Product Performance

Fashion, electronic time delay switch lighting and other power button timer can replace the existing switch, to provide energy-saving features, timed lighting and power off, to avoid unnecessary power consumption.
This unit provides a variable timing intelligent choice, neon blue backlit buttons indicate the location where the darkness.
One-touch button timer can run as a 2-wire, 3-wire and multi-channel applications, select from the switch.

Applications

• The maximum load of 16 amps, no matter what type, including resistive load and incandescent / fluorescent lighting, and any appliances.
• transformed into standard 25mm bottom box
• Re-trigger function
• Hide the screws
Last minute indicators
• Cancel function given time
• IP66 protection rating
• For multiple switches using a push-button switch is possible.

Timer switch, timing function selection (Figure 3), Diagram3:
