TDL-2117

Specification

Modle No.	TDL-2117
Fuction discription	Outdoor touch timer, relay control load, 16A
Operating voltage	AC 110V~250V (50~60Hz)
Perating temp.	-20 °C ～ +50 °C
Load power	16A
Load capacity	Resistive load and incandescent / fluorescent lighting, no load
Wiring	Bipolar
Output mode	Outdoor touch timer
Delay Range	4-speed delay selection DIP switch selection
Installation	Standard 86, wall mount
Dimension/color	86 * 86 mm/porcelaine

Product Performance

Fashion, high-grade brushed stainless steel panels, touch timer provides excellent functionality and energy efficiency for a wide range of outdoor use
A subtle touch activation. Touch Timer, when used in an outdoor environment, providing greater reliability, mechanical electronics unit as a non. Stainless steel panels, mounting screws and screw cap seal, easy to install.
All part of the variable timing options, blue backlit neon indicator ring and automatic reset feature rich devices. It also applies to multi-channel 2-wire, 3-wire applications and from the switch.

Applications

• The maximum load of 16 amps, no matter what type, including resistive load and incandescent / fluorescent lighting, and any appliances.
• transformed into standard 25mm bottom box
• Re-trigger function
• Hide the screws
Last minute indicators
• Cancel function given time
• IP66 protection rating
• For multiple switches using a touch switch is possible.

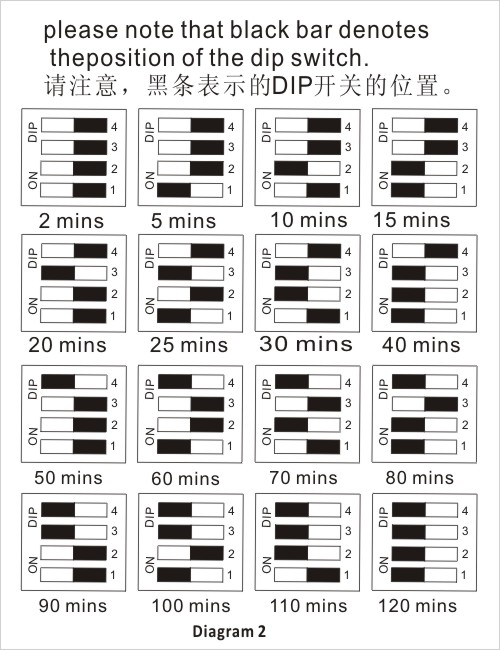

Timer switch, timing function selection (Figure 3), Diagram3:

Data Download

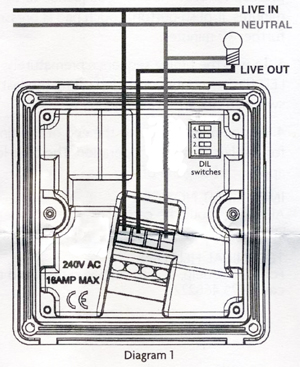

connection diagram
