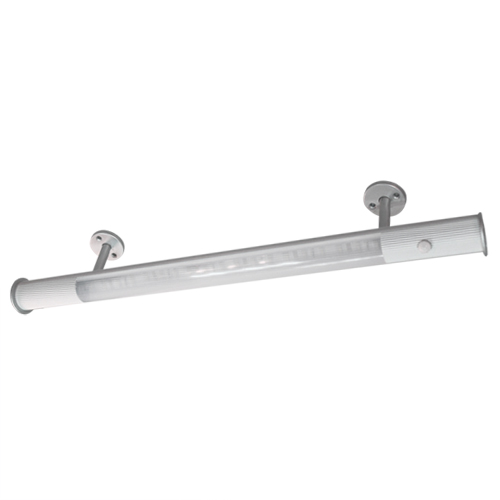

TDL-225
Product Description:



Typcal Installation





Adopt advanced Infrared detection sensor technology. Internally installed Environmental temperature compensation circuit and supply voltage regulator control circuit .The whole circuit with optimized design, and adopting material with high quality and high precision , is enjoying a great popularity over the world.
Specification:
Induction mode: Adopting double window, large diameter of famous infrared sensors
Detecting angle: 120 degree
Detecting distance: >3m
Service time :> 80000h
Color: white/warm white
Operating current:250MA
Power:0.9W
Lum: 30LM
Operating voltage: 90VAC ~ 265VAC
Delay time: 15 seconds
Operating temperature:-40~60
Dimension: 480,580,680,780m

Function and Features
Adopting advanced LED lamp : high efficiency, energy saving, environmental, long service time, anti-explosive.
Adopting advanced Infrared detection sensor technology, highly sensitive, anti-disturbance, quick response.
Automatic induction.
Delicate appearance design and it is light and fashionable.
Reasonable structural design, concealed fastening.

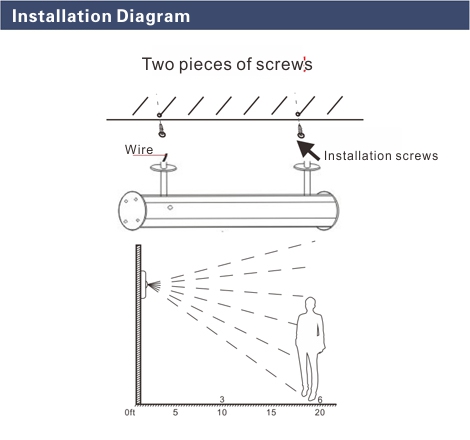

Installing Method
2 screws
Attentions

This light is not waterproof, and should not installed in any place with much rain.
Sensor light should not be set beside the window, or any place with strong light environment.

Range of application
wardrobe, the hotel wardrobe,sensor Clothes rail and light tube sensor Clothes rail and so on.
Data Download
wiring diagram induction designsketch operating guide
