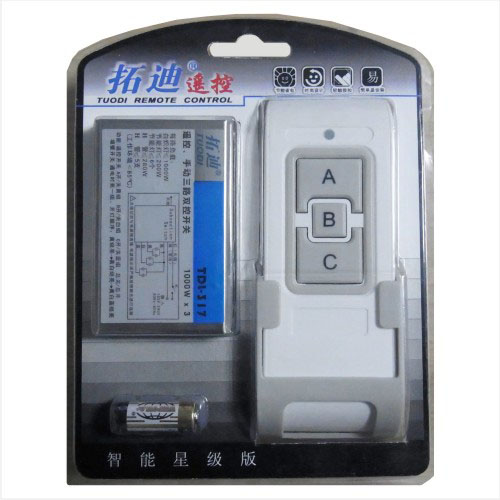

| T317A |
| |
|
| Model No. |
T317A |
| Fuction discription |
control 3 load switchs |
| Operating voltage |
185V-240VAC |
| Perating temp. |
-20 °C ～ +50 °C |
| Load power |
incandescent lamp 1000W
energy saving lamp 200W,6PCS
H tube 280W,5PCS
|
| Connecting style |
black-null line,red-caustic line,yellow-blue-white-output
line of caustic |
| Load of control |
3 loads |
| control angle |
all direction |
| Control diatance |
20~30 M |
| Size of controller |
122×44×16.5mm |
| Size of receiving box |
82×47×22mm |
|
|
| This
kind of controllers are widely used for switch of energy saving lamp,incandescent
lamp ,fluorescent lamp, quartz lamp,and LED lights in hotel,shopping
mall,house,etc.they are also can be used for different appliances
according to their power. |
|
- Adopt TOSHIBA original integrated circuit,it is easy to install.Digital
encryption no Interference.
- Radio-frequency emission,all-direction control. detecting distance>30M.stable
receiving.
- Wall switch remotely control the Line control switch. lighting
Sequence: yellow,yellow-white,yellow-white-blue.
- Nice and simple design,service life of battery is above one
year.(equipped with pedestal ,it is convenient
for wall installation ,and with controller placed on it.)
|
|
- please check if it is short circuited or damaged before assembling.operate
following the circuit diagram,ensure insulation,safty,fastness.
- Total output power can not exceed the maximum load( power marked
on shell of the machine).
- Frequency and other functions are set well before leaving factory,no
subsequent alteration . Replace same model battery when detecting
distance is shorting.(battery model:23A12V)
- Cut off power when installation,maintaining,and dismantling.
- Any abnormal condition,do not repair by yourself(HV),take your
warranty card to factory for repairing.
|
| |
| |
| |

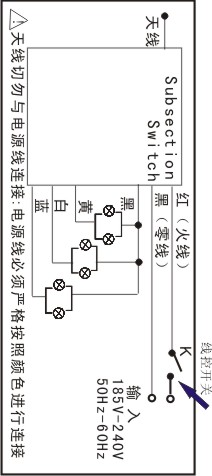

 connection
