SHENZHEN TUODI ELECTRONICS CO., LTD.

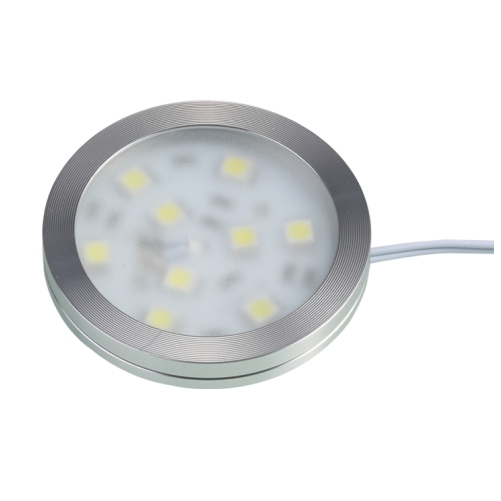

| TDL-5011A | |||||
| Product Discription |
|
||||
| Adopt most advanced aluminium alloy wire drawing teconology .it is optimized design,adopting material with high quality and high precision , and it is easy to install which is enjoying a high population in the world. | |||||
| Function and Features | |||||
| Adopting
advanced LED technology: high efficiency, energy saving, environmental,
long service time, anti-explosive. Delicate appearance design and it is light and fashionable. Reasonable structural design, concealed fastening. |
|||||
| Specification | |||||
| Led
Service time :> 80000h Color: white /worm white（optional） Power：12VDC Power:2W Lum: 56LM Operating current：130ma Favorable temp & humidity: -5℃-38℃, 5%-93% Dimension:60*6.7mm Weight: 55g Storage temp:-10℃-50℃ |
|||||
| Installing method | |||||
| Screw fixation | |||||
| Attentions | |||||
| Operating
temp must be controlled between -5℃-40℃ This light is not waterproof, and need not installed in any place with much rain. |
|||||
| Range of application | |||||
|
wardrobe, ambry, kitchen cupboards, the hotel wardrobe, bookcase,
and so on. |
|||||
| Data Download | |||||

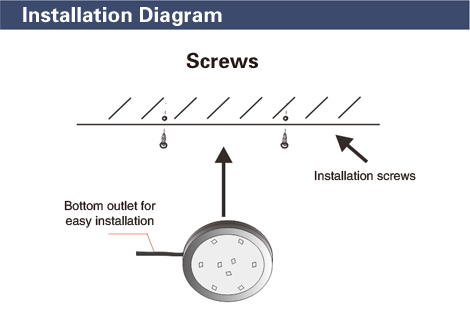

 Installing
diagram |
wiring
diagram |
induction
designsketch |
operating
guide |
||
.jpg) |
|||||
| |
