TDL-5013
Product Discription


Sensor switch

Typcal Installation


Cupboard Installation
Adopt most advanced aluminium alloy wire drawing technology .it is optimized design,adopting material with high quality and high precision ,l which is enjoying a high population in the world.
Specification
Induction mode: infrared sensor
Induction sensitive distance：>6cm
Led Service time :> 80000h
Lum:30LM
Color: white /worm white（optional）
Operating current：140MA
Power:1.3W
Favorable temp & humidity: -5℃-38℃, 5%-93%
Dimension:450*50*10mm
Weight: 110g
Storage temp:-10℃-50℃

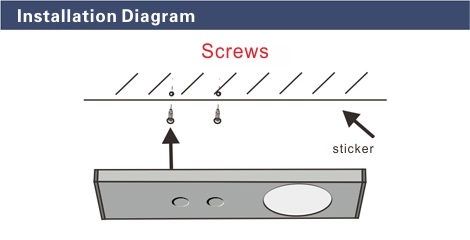

Installing method
Screw fixation
Attentions

Operating temp must be controlled between -5℃-40℃
This light is not waterproof, and need not installed in any place with much rain
Sensor light should not be set beside the window, or any place with strong light environment.
Range of application
wardrobe, hotel ambrywardrobe , kitchen cupboards, bookcase, in-room safe, tents, car back box.
Data Download
Installing diagram wiring diagram induction designsketch operating guide
