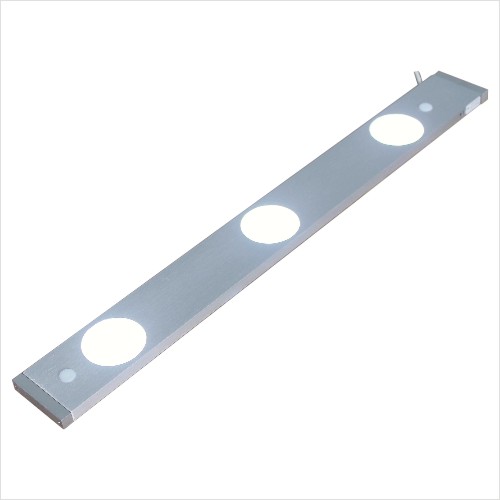

| TDL-5015 | ||||
| Product Discription |
|
|||
| Adopt advanced LED technology with high efficiency and advanced Infrared detection sensor technology.The whole circuit with optimized design, adopting material with high quality and high precision , is enjoying a great popularityover the world. | ||||
| Specification | ||||
| IInduction
mode: infrared sensor Induction sensitive Angle: 120 Led Service time :> 80000h Luminance: 120LM Power: 3.5W Color: white /warm white（optional） Operating current：150MA Power:12DVC Favorable temp & humidity: -5℃-38℃, 5%-93% Dimension:450*50*10mm Weight: 190g Storage temp:-10℃-50℃ |
||||

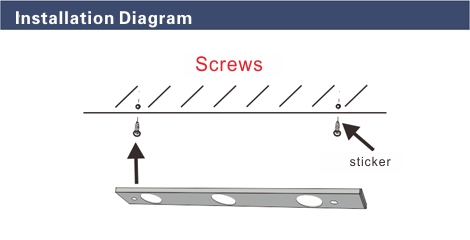

| Installing method | ||||
| Screw fixation | ||||
| Attentions | ||||
| Operating
temp must be controlled between -5℃-40℃ This light is not waterproof, and need not installed in any place with much rain Sensor light should not be set beside the window, or any place with strong light environment. |
||||
| Range of application | ||||
|
wardrobe, hotel ambrywardrobe , kitchen cupboards, bookcase, in-room
safe, tents, car back box. |
||||
| Data Download | ||||
 wiring
diagram |
induction
designsketch |
operating
