SHENZHEN TUODI ELECTRONICS CO., LTD.

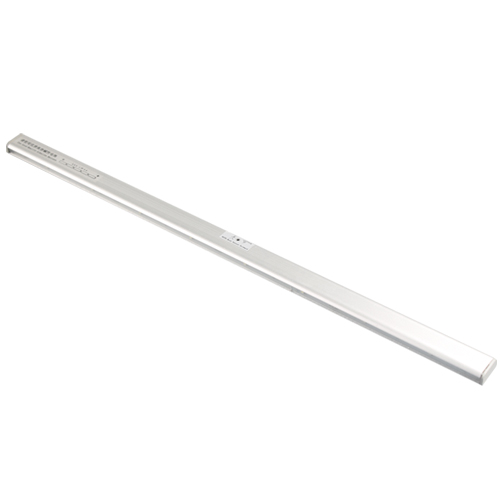

| TDL-5017 | ||||
| Product Discription |
|
|||
| TDL-5017 Adopt advanced LED technology with high efficiency and advanced Infrared detection sensor technology. The whole circuit with optimized design, adopting material with high quality and high precision, is enjoying a great popularity over the world. | ||||
| Specification： | ||||
| Switch：PIR
sensor Detecting angle: 120 degree Detecting distance: >3m Service time :> 80000h Color: white/warm white Operating Current: 130 mA Voltage:1.5V X 5AAA Power:1W Lum: 30LM Operating temperature:-10-50 Size: 500*29*14.6mm（customized） |
||||
| Function and feature | ||||
| Adopting
advanced LED technology: high efficiency, energy saving, environmental,
long service time, anti-explosive. Adopting advanced Infrared detection sensor technology, highly sensitive, anti-disturbance, quick response. Automatic induction. Delicate appearance design and it is light and fashionable. Reasonable structural design, concealed fastening.. |
||||
| Attentions: | ||||
|
Operating temp must be controlled between -5℃-40℃ This light is not waterproof, and need not installed in any place with much rain Sensor light should not be set beside the window, or any place with strong light environment. |
||||
| Range of Application: | ||||
Wardrobe,
hotel, ambry wardrobe, kitchen cupboards, bookcase, in-room safe,
tents, car back box. |
||||
| Data Download | ||||
 wiring
diagram |
induction
designsketch |
operating
guide |
||
| |
