SHENZHEN TUODI ELECTRONICS CO., LTD.

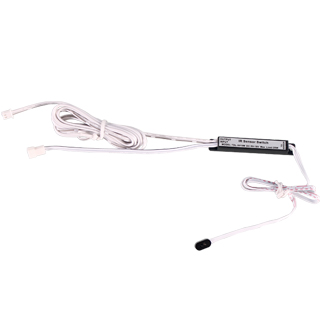

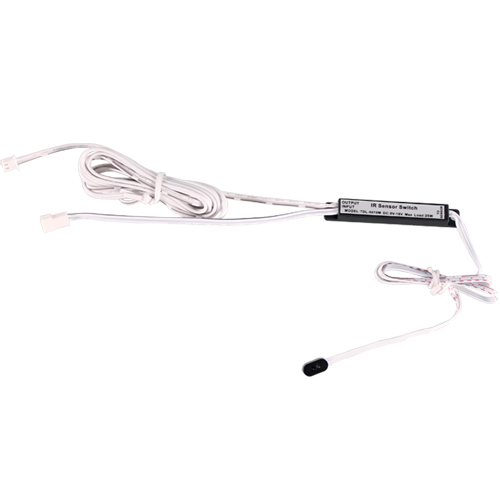

TDL-5019M
Specification

Model No.
TDL-5019M
Function discription
Output low when sensing, output high without induction.
Operating voltage
DC 8-18V
Operating temp.
-20 °C ～ +50 °C
Quiescent Current
<5uA
Output Current
3A
Load capacity
25W
Output mode
Inductive output, input a few volts output is a few volts
Delay Range
No
Light control range
No
Induction way
Active
Induction angle
45 degree cone angle
Detecting distance
<10CM
Dimension
73.9 * 10.3* 8.5mm
Range of application&Functions and Features
1. The person to output, delay shut down automatically after people leave,
2. For automatic sensor trash can, auto-sensing shoe polisher, automatic sensor faucets, sensor smart billboard advertising machine, dryers, sensor light box, LED light bar sensor switch, auto-sensing lights wardrobe cabinets and other intelligent sensor product features ..
3. The need for more explanation, please download the instructions Xiangxi
The random delay: 1 seconds (can be customized according to customer requirements, customized)
5. Xiangxi need more installation instructions, please download and install instructions.
Data Download
connection diagram Induction designsketc operating guide
