SHENZHEN TUODI ELECTRONICS CO., LTD.

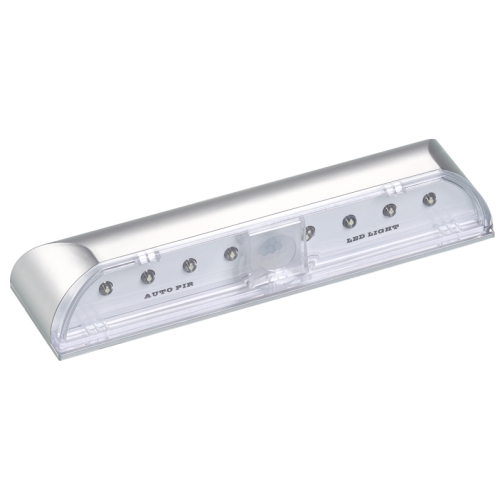

TDL-7123
Specification:



Typcal Installation




Switch:PIR sensor
Detecting angle: 120 degree
Detecting distance:> 3m
Service time :> 80000h
Color: white/warm white
Operating current: 180MA
Voltage:1.5V X 2AA
Power:0.2W
Lum: 10LM
Operating temperature:-10-50
Size: 160*46*30mm
Weight: 100g
Feature:
1. pir sensor +light sensor
2. Battery operated(2AA battery)
Installation:
1. Magnetic mounting
2. Install bracket
Attention:

1. With light sensor it only works at night or in the darkness
2. don’t install in a place with strong wind and heat to avoid any false triggering
3. The operating temperature should be -5°C~40°C.otherwise there may be false triggering.
4. The Light is not waterproof; don’t install it in any place with heavy water and humidity.

Range of application
Doorway,stairway, stair, attic,inner room,The basement, garage, the cellar, wardrobe, hotel ambrywardrobe , kitchen cupboards, bookcase, in-room safe, tents, car back box.
Data Download
wiring diagram induction designsketch operating guide
