SHENZHEN TUODI ELECTRONICS CO., LTD.
| TDL-7124 | |||||
| Specification： |
|
||||
| Switch
mode: PIR sensor Detecting angle: 120 degree Detecting distance: 3m Service time :> 80000h Color: white/warm white Operating current: 95MA Power:0.25W Lum: 24LM Operating temperature:-10-50 Size:100*100*16mm Weight: 178g |
|||||
| Feature: | |||||
| 1.
pir sensor +light sensor 2. USB charge/rechargeable lithium battery 3. .on/off switch |
|||||

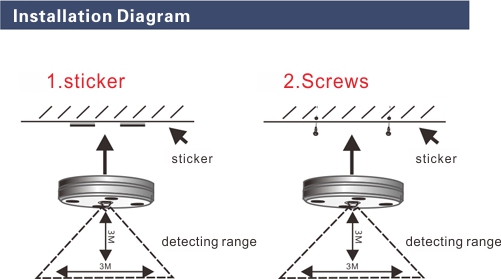

| Installation: | |||||
| 1.
screw installation 2. double-sided adhesive paste |
|||||
| Attention: | |||||
| 1.
With light sensor it only works at night or in the darkness 2. don’t install in a place with strong wind and heat to avoid any false triggering 3. The operating temperature should be -5°C~40°C.otherwise there may be false triggering. 4. The Light is not waterproof; don’t install it in any place with heavy water and humidity. |
|||||
| Range of application | |||||
| It widely used in cabinet, corridor, stairs, closet, children’s room, bedroom, bathroom and kitchen room… | |||||
| Data Download | |||||
 Installing
diagram |
wiring
diagram |
induction
designsketch |
operating
guide |
||
 |
|||||
| |
