intelligent LED sensor light,TDL-7126

SHENZHEN TUODI ELECTRONICS CO., LTD.

TDL-7126
Specification：				Typical installation Wardrobe
Switch mode: PIR sensor Detecting angle: 140 degree Detecting distance :> 3m Service time :> 80000h Color: white/warm white Operating current: 250MA Voltage:1.5V X 4AAA Power:1.5W Lum: 50LM Operating temperature:-10-50 Size: 3054022mm Weight: 113g
Feature:
1. pir sensor +light sensor 2. toggle switch: Automatic. Normally on. off 3. Battery operated 4. Adjustable induction angle:0-90 degree adjustable 5. Adjustable installation angle: 180degree adjustable

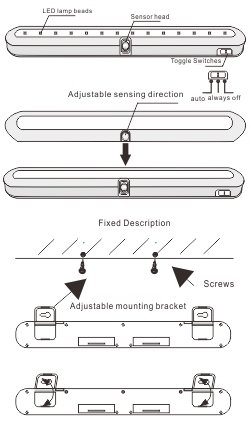

Installation:
Install bracket
Attention:
1. With light sensor it only works at night or in the darkness 2. don’t install in a place with strong wind and heat to avoid any false triggering 3. The operating temperature should be -5°C~40°C.otherwise there may be false triggering. 4. The Light is not waterproof; don’t install it in any place with heavy water and humidity.
Range of application
It widely used in cabinet, corridor, stairs, closet, children’s room, bedroom, bathroom and kitchen room…
Data Download
Installing diagram	wiring diagram	induction designsketch	operating guide
