SHENZHEN TUODI ELECTRONICS CO., LTD.

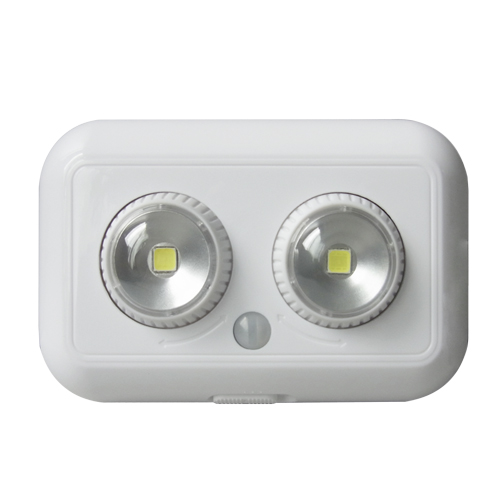

| TDL-7127 | |||||
| Specification： |
|
||||
| Switch：PIR
sensor Detecting angle: 140 degree Detecting distance:> 3m Service time :>80000h Color: white/warm white Operating current: 100% 103MA,75% 95MA 50% 60MA Voltage: 1.5V X 3AAA Power:1W/0.6W/0.4W Lum: 100%(33LM), 75%(32LM),50%(30LM) Operating temperature:-10-50 Size: 117*75*33mm Weight: 84g |
|||||
| Feature: | |||||
| 1.
pir sensor +light sensor 2. brightness is adjustable:100% .75%.50% 3. directing of sensor is adjustable:360 degree adjustable |
|||||

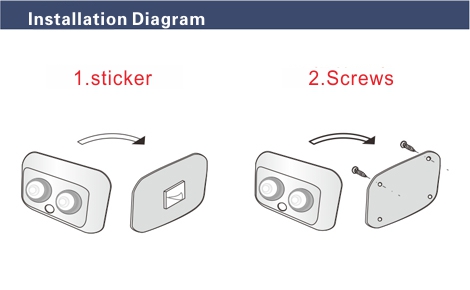

| Installation: | |||||
1.Screw
fixation |
|||||
| Attentions | |||||
| 1.
With light sensor it only works at night or in the darkness 2. don’t install in a place with strong wind and heat to avoid any false triggering 3. The operating temperature should be -5°C~40°C.otherwise there may be false triggering. 4. The Light is not waterproof; don’t install it in any place with heavy water and humidity. |
|||||
| Application: | |||||
| It widely used in cabinet, corridor, stairs, closet, children’s room, bedroom, bathroom and kitchen room… | |||||
| Data Download | |||||
 Installing
diagram |
wiring
diagram |
induction
designsketch |
operating
guide |
||
 |
|||||
