Product Discription

Typcal Installation

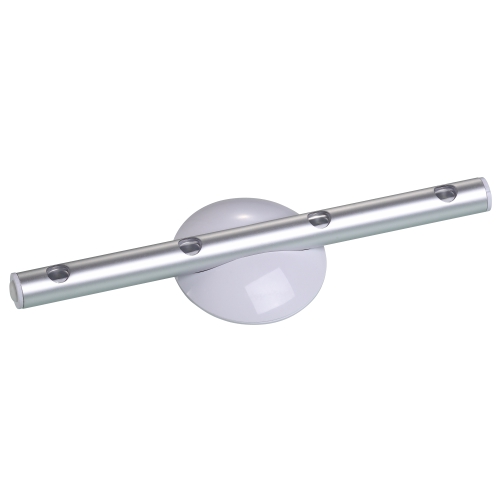

This LED light is made up with aluminum alloy materials. There are four high-luminance LED lights in it. Metal material leave the sense of a high quality . we get the inspiration of the design from Classical Chinese Musical Instruments: clarinet this light combines the classic with fashion is one of the Exquisite designs of our company
Switch:PIR sensor
Detecting angle: 120 degree
Detecting distance: >3m
Service time : > 80000h
Color: white/warm white
Operating currentt: 120MA
Voltage :3 AAA battery or rechargeable battery
Power: 0.5W
Lum: 19LM
Operating temperature: -10℃-50℃
Size: 220*16.0mm(length* diameter)
Weight: 60g (Without batteries)
Function and feature
     Adopting advanced LED technology: high efficiency, energy saving, environmental, long service time, anti-explosive.
Adopting advanced Infrared detection sensor technology, highly sensitive, anti-disturbance, quick response.

    Use the mechanical switch; first press to turn on , while pressing again to turn off the lights. It is easy to operate and the appearance is elegant.
Delicate appearance design and it is light and fashionable.
Reasonable structural design, concealed fastening. Case installation can be directly fixed with the magnet or fixed on the wood materials.

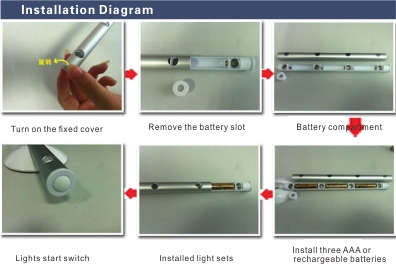

Installing Method :
Magnet installation
     You are supposed to use the alkaline battery with high performance,such as 555 brand, NANFU,GP and AAA rechargeable battery.
This light is not waterproof, and need not installed in any place with much rain, heavy humidity, and low temp, very changeable light.
Sensor light should not be set beside the window, or any place with strong light environment.
Operating temp must be controlled between -10℃-50℃.
Range of Application:

Doorway stairway, stair, attic inner room ,The basement, garage, the cellar, wardrobe, hotel ambry wardrobe ,
Kitchen cupboards, bookcase, in-room safe, tents, car back box.

Data Download
wiring diagram induction designsketch operating guide
