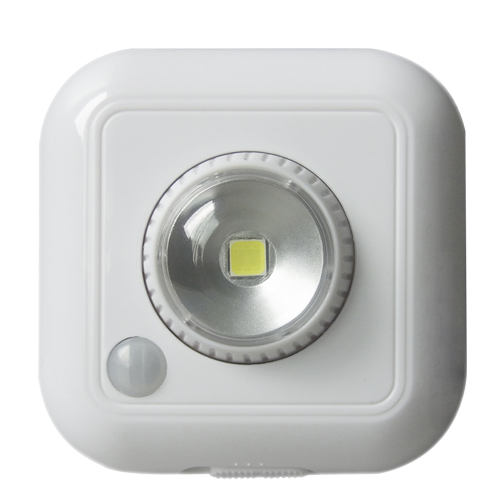

intelligent LED sensor light,TDL-7131

SHENZHEN TUODI ELECTRONICS CO., LTD.

TDL-7131
Product Discription				Product package Wardrobe
Switch mode: PIR sensor Detecting angle: 140 degree Detecting distance: >3m Service time :> 80000h Color: white/warm white Operating current: 100% 103MA,75% 72MA 50% 51MA Voltage: 1.5V X 3AAA Power: 0.5/0.4/0.25W Lum: 100%(33LM), 75%(30LM),50%(18LM) Operating temperature:-10-50 Size: 757533mm Weight: 53g
Feature:
1. pir sensor +light sensor 2. brightness is adjustable:100% .75%.50% 3. directing of sensor is adjustable:360 degree adjustable

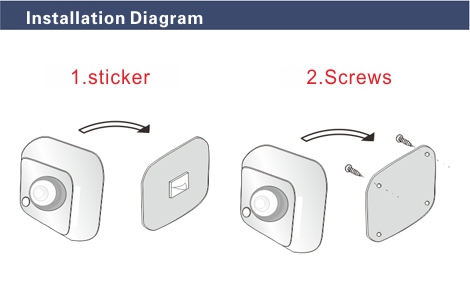

Installation:
1.Screw fixation 2.double-sided adhesive paste
Attention :
1. With light sensor it only works at night or in the darkness 2. don’t install in a place with strong wind and heat to avoid any false triggering 3. The operating temperature should be -5°C~40°C.otherwise there may be false triggering. 4. The Light is not waterproof; don’t install it in any place with heavy water and humidity.
Application:
It widely used in cabinet, corridor, stairs, closet, children’s room, bedroom, bathroom and kitchen room…
Data Download
Installing diagram	wiring diagram	induction designsketch	operating guide
