SHENZHEN TUODI ELECTRONICS CO., LTD.
| TDL-7133B | |||||
| Specification： |
|
||||
| Switch:
PIR sensor Detecting angle: 140 degree Detecting distance: :>5m Led Service time: :> 80000h Color: white/warm white Voltage:5V Power:1.75W Static current<80uA Lum:25LM Operating temperature:-10-50℃ Size: 150*190mm Weight: 302g Material:ABS+Aluminum+Acryli |
|||||
| Feature: | |||||
| 1.
pir sensor +light sensor 2. Toggle switch: AUTO.On.OFF 3. rechargeable lithium battery |
|||||
| Installation: | |||||
1.3M
label install |
|||||
| Attention: | |||||
| 1.
With light sensor it only works at night or in the darkness 2. don’t install in a place with strong wind and heat to avoid any false triggering 3. The operating temperature should be -5°C~40°C.otherwise there may be false triggering. 4. The Light is not waterproof; don’t install it in any place with heavy water and humidity |
|||||
| Range of application | |||||
|

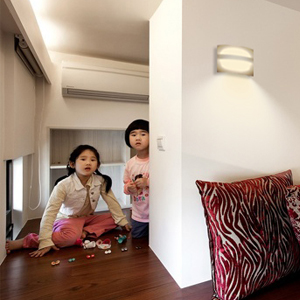

It widely used in cabinet, corridor, stairs, closet, children’s room,
bedroom, bathroom and kitchen room… |
|||||
| Data Download | |||||
 Installing
diagram |
wiring
diagram |
induction
designsketch |
operating
guide |
||
 |
|||||
| |
