TDL-CM400MA;LED constant-voltage source

SHENZHEN TUODI ELECTRONICS CO., LTD.

TDL-CM400MA

Specification

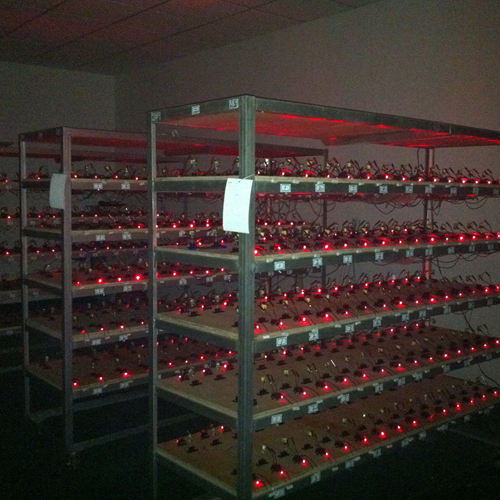

4 hours' burn-in test to gurantee the quality of products

Model No.	TDL-CM400MA
Input voltage	85VAC~277VAC
Output voltage	12VDC
Power factor	>0.9
Harmonic distortion	(THD):<20%
Supply efficiency	>75-80%
Output current	350mA
Output power	4.2W
Dimension	105×41.7×19.5mm
Triggering switch	The triggering wire is a metal piece, the first press is to turn on, the second press is to turn off
Triggering wire	The maximum length of Triggering wire is 5M

Functions and Features

* keep high efficiency within the output power
* offer wide alternating voltage,input voltage85VAC~277VAC
* Full protection，which can erriciently prevent the driver from lighting stroke(above 1KV)
*Include short-circuit protection,overcurrent protection,overvoltage protection,overload protection,overtemp. protection.
* Products are installed and maintaned in modularization and standardization.

Environment parameter

Operating temp.:-25 -60℃ (cover tempt.)
Storage temp.:-40 -85℃
Operating humidity:10-90% relative humidity
Average service time: (MTBF)50,000 hours
Safety Certification : UL8750,EN61347,GB19510
Electromagnetic jamming :EN55015,EN61547,EN61000.
